Archive Rack Shelf

DACS Punch Deck®

Archive rack shelf is designed primarily for records storage boxes, but is a solution for many other applications. DACS’ Punch Deck® – the top selling archive rack shelf in the industry – will meet Fire Code and safety requirements.

Description

Archive Rack Shelf

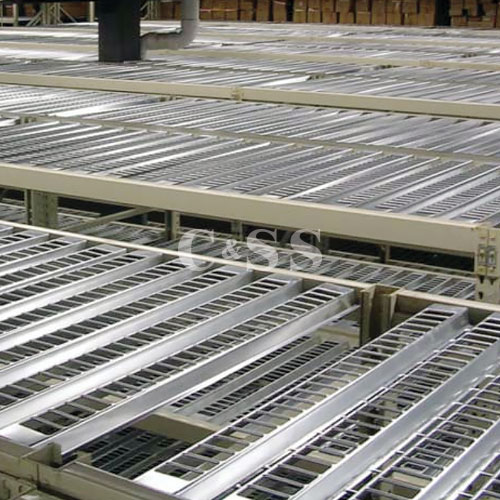

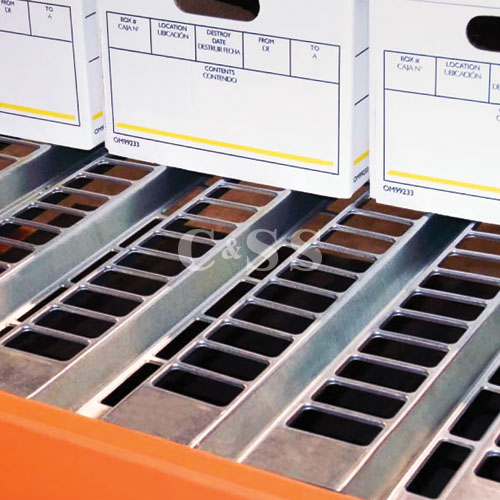

Archive rack shelf is especially important for properly storing boxes on your racks. The large 50% openings meet Fire Code for non-solid decking. DACS’ Punch Deck® fits many common rack sizes and provides a wonderful solution because it also allows for sprinkler water to travel through the deck to lower shelf levels. The product’s smooth top surface reduces hang-ups that can cause damage to the bottom of your boxes. Its approachable, ergonomic design is made for hand stacking boxes to slide on and off easily without tearing. Punch Deck provides expanded strength across the entire shelf and minimize local surface distortions. The Punch Deck is evenly flush with the top of the pallet rack step beam allowing for easy labeling and bar coding on the face of the beam. The vivid galvanized finish gives your warehouse an amazingly sleek look that is easy to clean and maintain. Most industry standard sizes are available for fast turnaround times and quick shipments.

Some applications, such as storing small boxes and auto parts, require a more “solid” shelf. Our optional Punch Deck® Plus offers a great solution to go along with this product.

Typical Punch Deck® Applications

  • Office Records
  • Records Storage and Archive Storage
  • Furniture for both pallet and cantilever rack

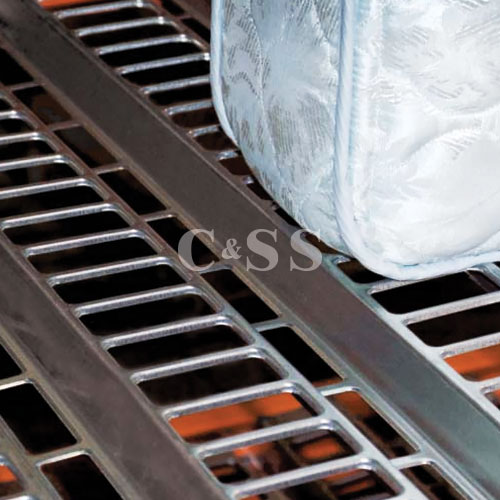

  • Mattresses
  • Carpeting and Flooring
  • Garments
  • Small Boxes
  • Rolled Fabrics and Cloth
  • Building Components
  • Auto Parts
  • Bagged Goods

DACS Punch Deck® Load Tables

English – Rack Depth – lb/sq. ft.
36″ 42″ 48″ 50″ 54″ 60″ 66″ 72″
Punch Deck® 101 200 135 91 80 64
Punch Deck® 201 225 194 130 115 91 70 50
Punch Deck® 301 250 200 178 158 125 92 70 50
Metric – Rack Depth – kg/sq. m.
915mm 1065 1220 1270 1370 1525 1676 1830
Punch Deck® 101 978 660 445 391 313
Punch Deck® 201 1100 949 636 562 445 342 245
Punch Deck® 301 1223 978 870 773 611 450 342 245
Available Widths

Combine To Achieve Desired Rack Shelf Coverage.

Examples:
96″ = 2@30″ + 1@36″
108″ – 3@36″
144″ = 4@36″

Additional information

Manufacturer

DACS, Inc.

Shipping Points

Portsmouth, VA
