Drop-In Speed Regulator

Pallet Flow Racking (MFG)

Drop-In Speed Regulators provide a necessary control mechanism to maintain a safe, measured pallet flow or speed as they advance down the lane.

Description

Drop-In Speed Regulator for Pallet Flow Makes Warehouse Facilities Safer

Drop-In Speed Regulator provide the necessary control mechanism for maintaining safe, measured pallet flow or speed as they progress down the lane. The Drop-In Speed Regulator acts as a kind of braking device slowing the pallet and preventing it from gaining too much speed in the gravity-inspired process. Slowing the pallet provides better tracking of the lane which helps to maintain that the pallet arrives neatly with the lane opening at the pick face. This makes facilitating faster and easier extraction of the forklift.

Drop-In Speed Regulator How to Video

Drop-In Speed Regulators work with all wheeled tracks and help narrow roller track systems that may be installed on-site. Our most popular type of controller is the drop-in assembly which requires very minimal hardware and is quick and easy. Speed regulators are available in light, medium, and heavy duty options to best meet your inventory needs for pallet flows.

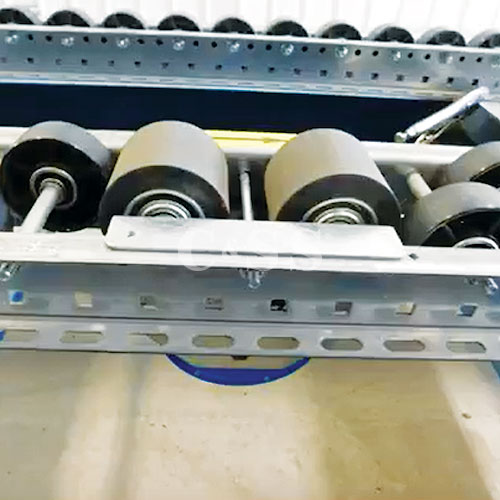

With simple to access tools and a few minutes of time, you can greatly improve your pallet flow system with safety and efficiency improving drop-in speed controllers. Place the speed regulator between the wheels in the opening. Check that the arrow lines up with the direction of flow. Insert the bolt and tighten the acorn nut snuggly, taking care not to overtighten it. Repeat for all speed regulators.

Drop-In Speed Regulator Tools You Need

  • 5” bolt
  • acorn nut
  • Wrench or Socket Wrench

Additional information

Manufacturer

Mallard Manufacturing

Shipping Points

Sterling, IL

Specifications

Advantages:

  • Drop-in design for quick installation and replacement
  • Pallet speed controlled at safe level
  • Pallets track centered down the lane
  • Ideal for freezer applications
  • Doubles the braking surface vs. direct mount for improved efficiency

Specifications:

  • Use with Magnum wheel, steel skate wheel & narrow roller pallet flow systems
  • Available in light, medium and heavy-duty options
  • Weight variance of 1500#
